BlueSky Sentinel Dry Scrubber for Fume & Gaseous filtration
Whether your project produces airborne dust, fume, gaseous contaminants, or all three at once, Bluesky offers a solution that keeps your job-site safe!
Our modular, proprietary dry scrubbers are built to handle multiple contamination types simultaneously by utilizing patented SmartBox® technology.
Sentinel Dry Scrubber Application
dLet's say for example, that your project involves metal fume containing Hexavalent Chromium from metal cutting, and off-gassing fumes from paints (Lead chromate, etc).
A BlueSky Sentinel dry scrubber system is configured to have multi-stage filtration by combining True HEPA (99.97% at 0.3 μm) filtration with specially blended GAC (granular activated carbon) SmartBox® module(s), creating an all in one, high flow-volume system for your project.
Each SmartBox® module fully encapsulates the filters and/or GAC inside, meaning that no worker EVER comes in contact with captured contaminants during filter or GAC bed replacement. Continue reading to see the contaminant types a BlueSky Sentinel dry scrubber is built for!
BlueSky Sentinel Dry Scrubber Gaseous Contaminant Types
VOCs (Volatile Organic Compounds)
H2S (Hydrogen Sulfide)
SO2 (Sulfur Dioxide)
HCL (Hydrochloric Acid)
O3 (Ozone)
Hg/Cd/Pb/As (Heavy Metals)
NO2 (Nitrogen Dioxide)
NH3 (Ammonia)
Painting Job Applications

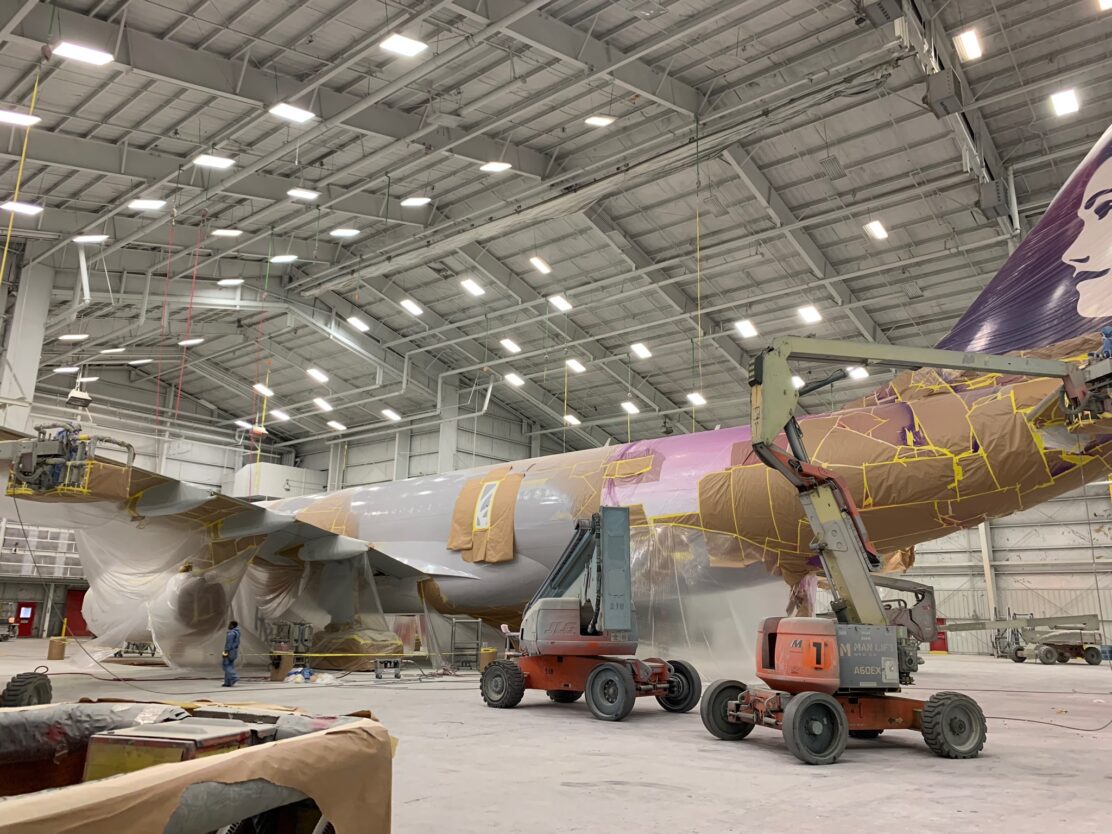

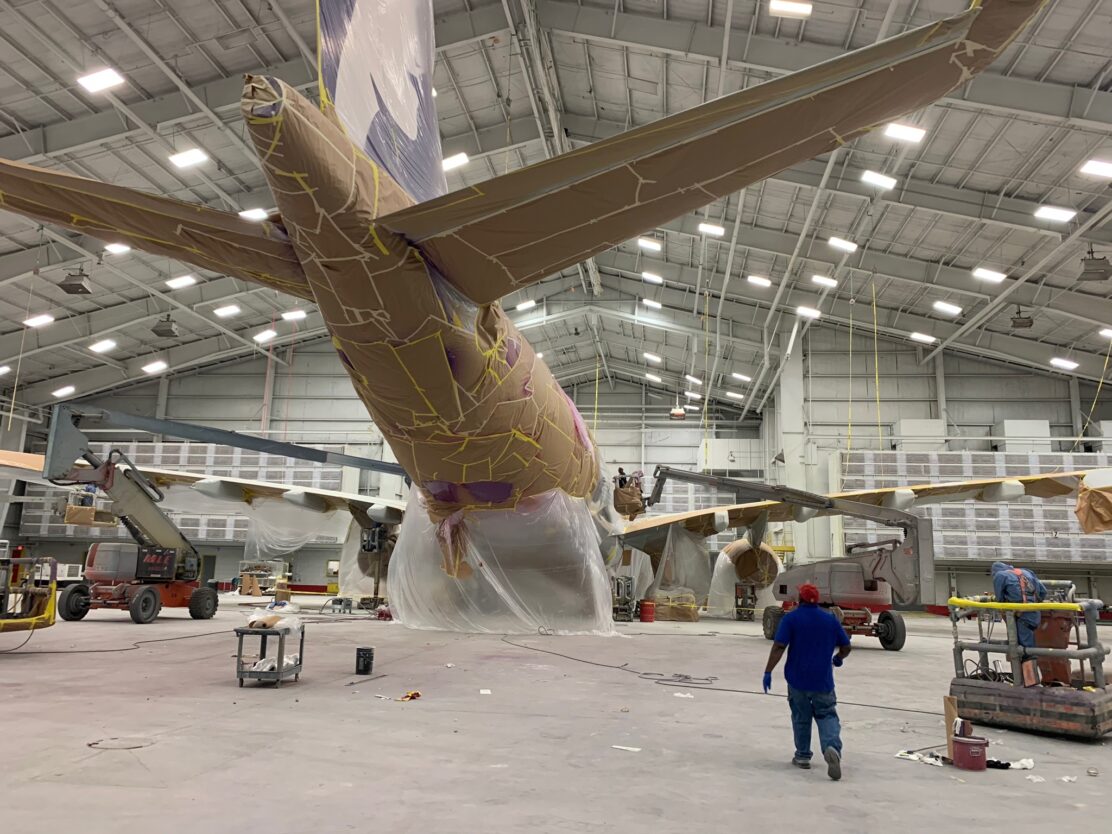

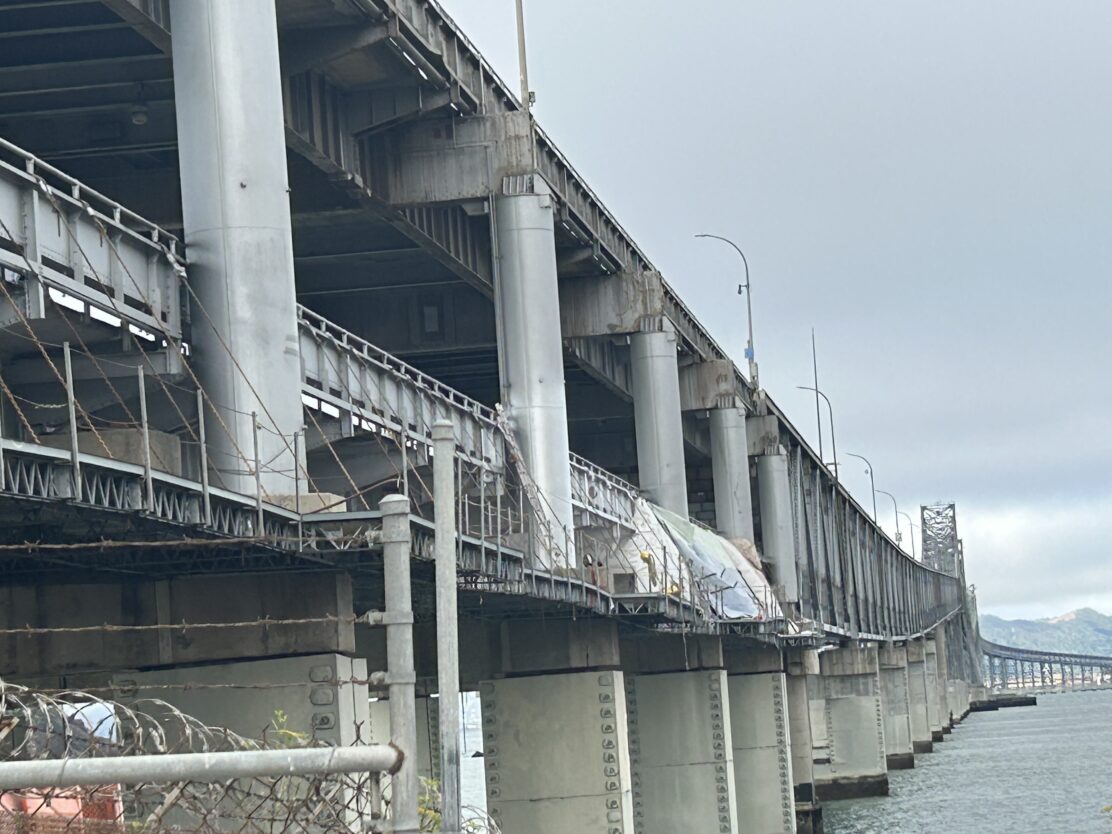

Often, painting refurbishment and repair projects on planes, ships, bridges, and in confined spaces require both HEPA dust collection, and air scrubbing to handle Lead, Silica, blast media dust, and VOCs.
The BlueSky Sentinel dry scrubber offers a combined solution to handle hazardous dust, fume, and gaseous filtration all in one configurable system which is easy and safe to use in the field. Our modularity allows for a machine to have filtration stages added or removed as your project's needs shift overtime.
Another perk of modularity is rapid mobilization and maintenance. All systems are configured from core components kept in stock within our rental fleet.
That means, for example, if something happens onsite, BlueSky can simply lift out the old components, and place in a new one to keep your jobsite safe, and functioning.
How does a BlueSky Sentinel dry scrubber work?
The most basic BlueSky Sentinel dry scrubber consists of 4 key stages in series, which can be scaled based on the project needs.
1. HEPA pre-filtration stage - Captures all airborne dust or fume particulate and maintains the effectiveness of the GAC SmartBox® module(s)
2. Gaseous contaminant removal stage - Specially formulated GAC blend based on gas-type to capture and neutralize (scrub) contaminant(s)
3. HEPA post-filtration stage - Ensures that the machine experiences zero particulate emissions (>99.99%)
4. TurboBox™ module - VFD and PLC controlled induced airflow, capable of up to 18" W.C. negative pressure
Note: All stages are modular, and separable based on job-site requirements (see second rendering). Configurations shown are assembled with components ready to mobilize, and fully stocked in our rental fleet.
click on either image to enlarge*

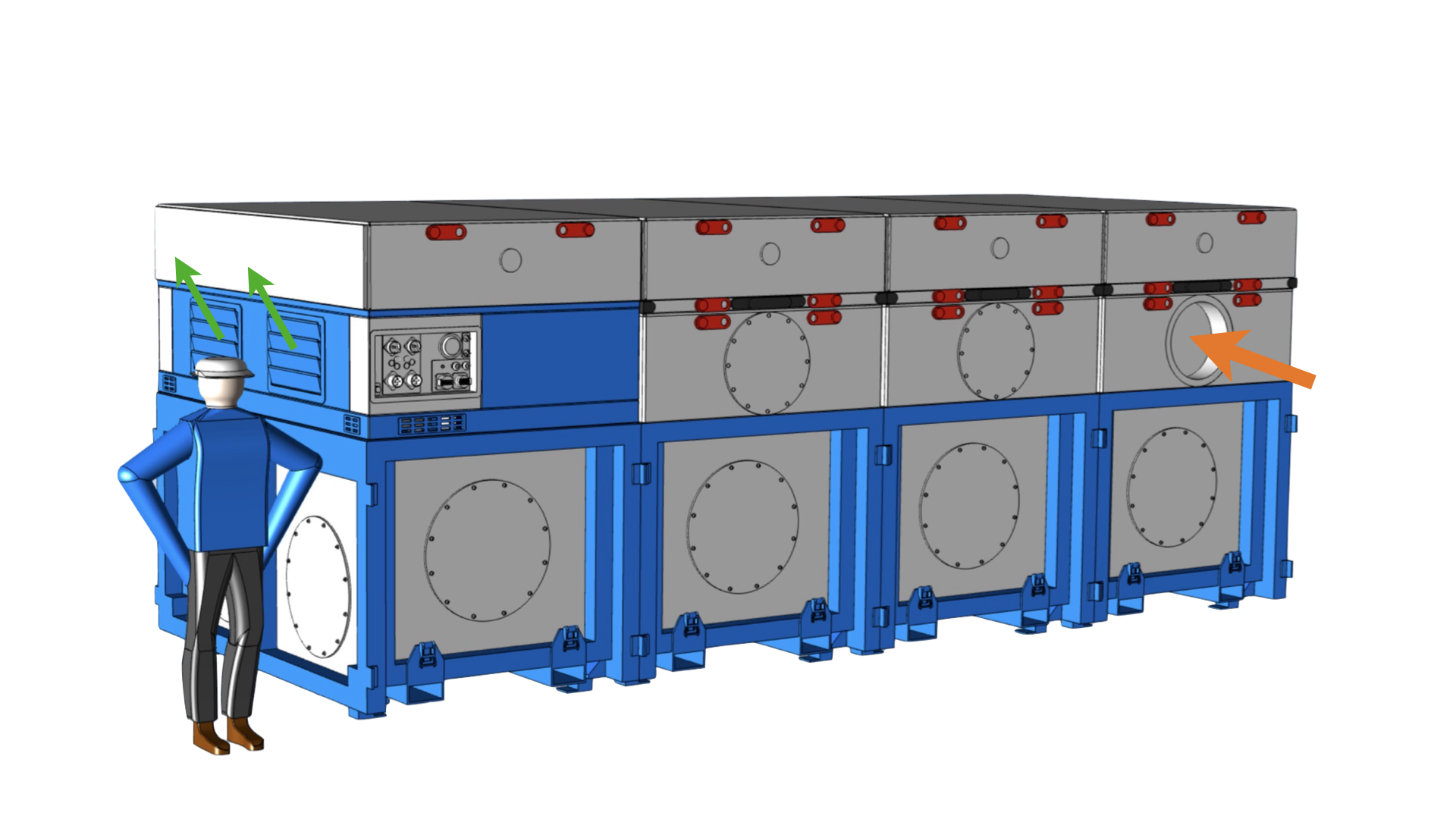

Basic BlueSky Sentinel dry scrubber configuration

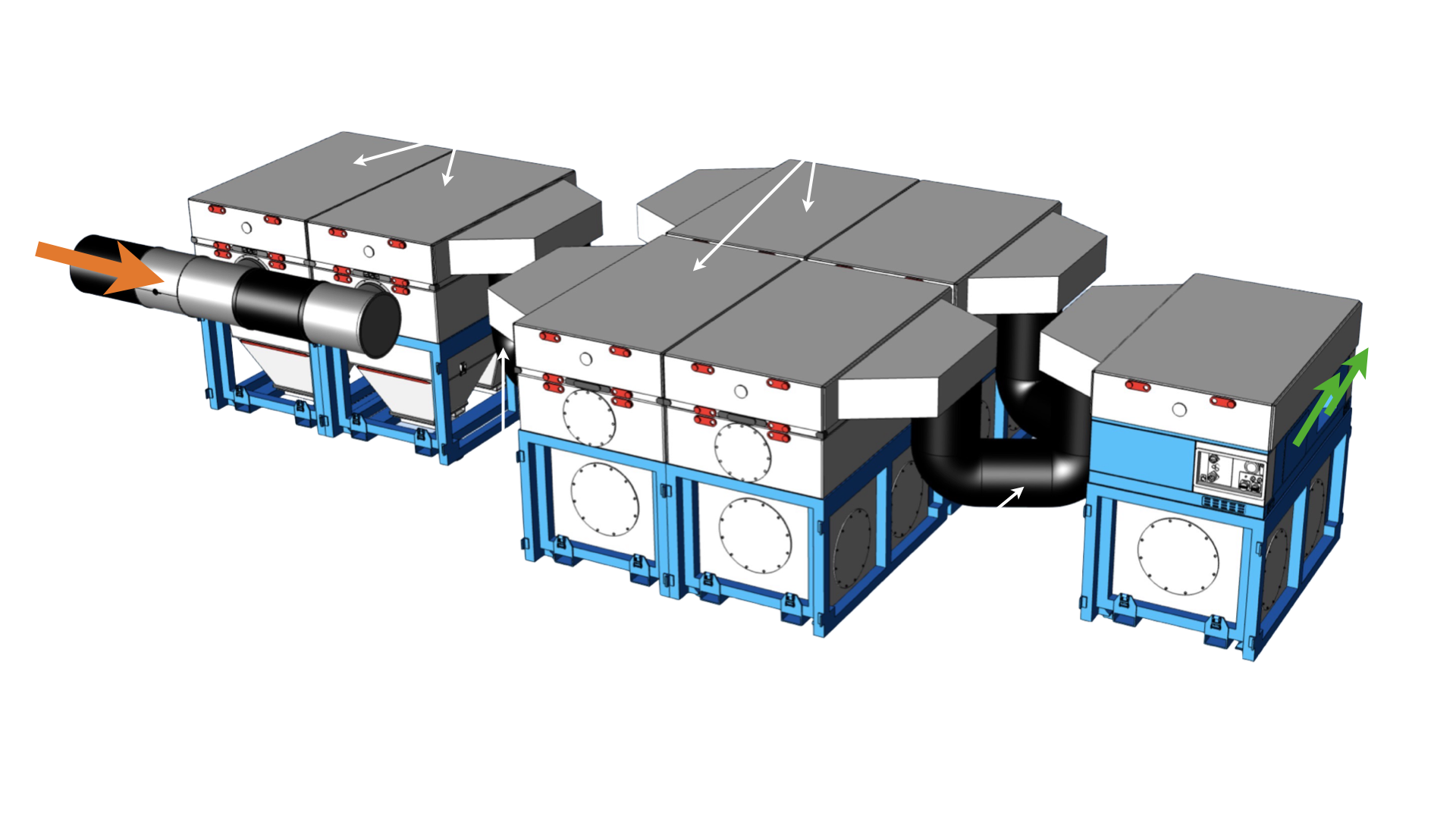

Configuration assembled for metal-cutting smoke, VOCs, and Ammonia capture
The world's most versatile industrial dry scrubber
Rent, short-term, long-term
Rent for a week, a month, a year or even longer
Freestanding
No special foundation required, fits into tight spaces where others don't.
Plug & play
We deliver the machine, connect it to existing ducting, power and air, and done!
Truly modular
Sections can be added or removed as needed as a project continues. For mobile or permanent solutions.
Filter changes, Installation, and Maintenance with a BlueSky Turn-Key Service contract
*Client pays for costs associated with new filters, we handle the labor.
SmartBox® module replacements are done without workers ever being exposed to the hazardous waste inside. We simply replace the existing SmartBox with an fresh one that has new filters already installed within one hour, and take the spent SmartBox® module to be processed off-site outside of critical path.
Less downtime means huge savings.
The SmartBox® module
Using the BlueSky® Sentinel with its patented SmartBox® Technology means hazardous fume, and gaseous contaminants are always encapsulated during use and disposal. Nobody touches any hazardous waste ever. It protects worker's health, the environment, and shields businesses from future lawsuits.
Contact Form
For inquires to rent or lease a BlueSky air-cleaning system, please submit the contact form or call using the numbers below, and we will respond shortly to begin configuring the ideal machine for your project site.
A BlueSky air-cleaning system can handle hazardous and non-hazardous dust types. It can also be configured as a dry-scrubbing system to capture or neutralize gaseous contaminants. A single BlueSky machine can induce 2,500 - 60,000 SCFM. Each machine is mobile, or can be placed on a fixed stand based on the project need.
